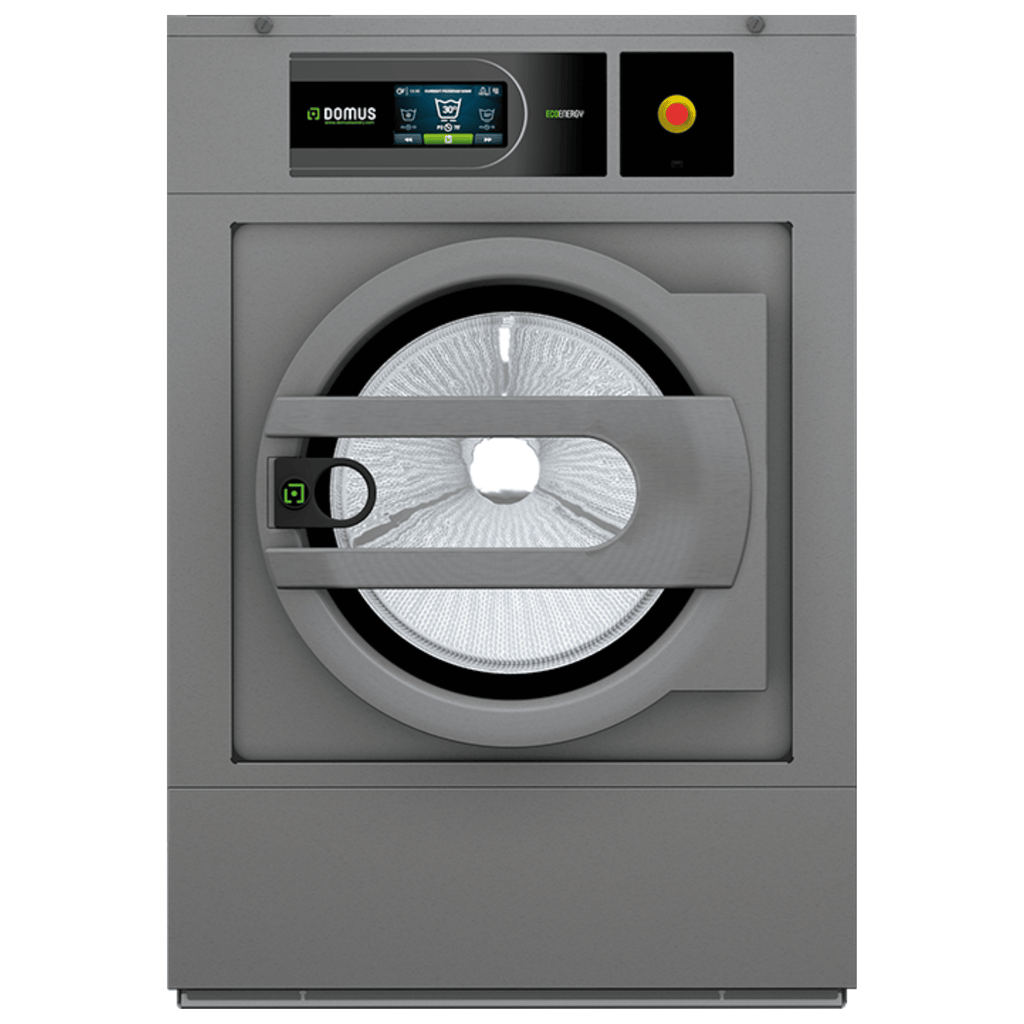

Domus DLS-35C TOUCH II Low Spin Commercial Washer - 35kg

The Domus DLS-35C TOUCH II is a 35kg commercial washer for on-premise laundries that move large volumes of linen every day. It suits hotels, hospitals, aged care, mining camps and commercial laundries where big batches need to be washed fast. It can be set up for staff use or self-service.

It’s controlled through Domus’s TOUCH II system, a fully programmable 7-inch touchscreen. Staff can run it easily, and you can set wash programs to suit your linen.

As a hard-mounted washer, it’s anchored to the floor with an anchoring base, so plan the install site before ordering.

Why it works

• 35kg capacity, 350L drum. It handles very large loads of sheets, towels and bulk linen, so there are fewer cycles on busy days.
• Extra large 560mm door. It makes loading and unloading heavy, bulky linen quicker and easier.
• TOUCH II touchscreen. A 7-inch, fully programmable microprocessor with a multilingual interface makes it simple for staff to use.
• Stainless steel drum and vat. Both are AISI 304 stainless steel, built for daily commercial use.
• 644RPM spin. A G-factor of 200 extracts water before drying.
• OPL or self-service. It can be configured for staff-run laundries or paid self-service, with remote payment available.
• IoT connectivity as standard. DOMUSCONNECT gives you remote technical service and laundry management.
• USB port. You can configure, update and analyse the machine without an internet connection.
• Intelligent consumption. Water and detergent use adjust automatically to the load.
• Automatic chemical dosing. It has 8 dosing signals as standard, with 6 more available as an option.
• Emergency stop button. Staff can halt the machine instantly if needed.
• Wet cleaning capable. It can handle delicate items that can’t be washed conventionally.
• Sluice option. A drum with 8mm holes is available for heavily soiled linen in aged care and healthcare.
• Water recovery ready. It’s compatible with Domus ECOTANK XL water recovery tanks to cut water use.
• Easy maintenance. A hinged control panel gives quick access, a technical menu shows usage statistics, and electronic parts are shared across the Domus range.

Specifications

• Brand: Domus
• Model: DLS-35C TOUCH II
• Type: Low spin commercial washer, hard mounted
• Capacity: 35kg (1:10 fill ratio), 39kg (1:9)
• Drum volume: 350L
• Drum size: 860mm diameter x 602mm depth
• Drum: AISI 304 stainless steel
• Spin speed: 644RPM
• G-factor: 200
• Door diameter: 560mm
• Controller: TOUCH II, 7-inch touchscreen
• Connectivity: DOMUSCONNECT IoT, USB
• Heating: Electric (21kW) or hot water
• Motor: 4kW
• Power, electric model: 400V 3-phase + N, 40A (or 230V 3-phase, 63A)
• Power, hot water model: 400V 3-phase + N, 16A (or 230V single phase, 32A)
• Water inlet: 3/4", 3 inlets
• Drain: 3"
• Noise level: Under 70 dB
• Mounting: Hard mounted, anchored to floor
• Dimensions: 979mm W x 1155mm D x 1411mm H
• Weight: 476kg
• Approvals: CB, WRAS, KIWA REG4
• Warranty: 2 years parts, 1 year labour
