Description

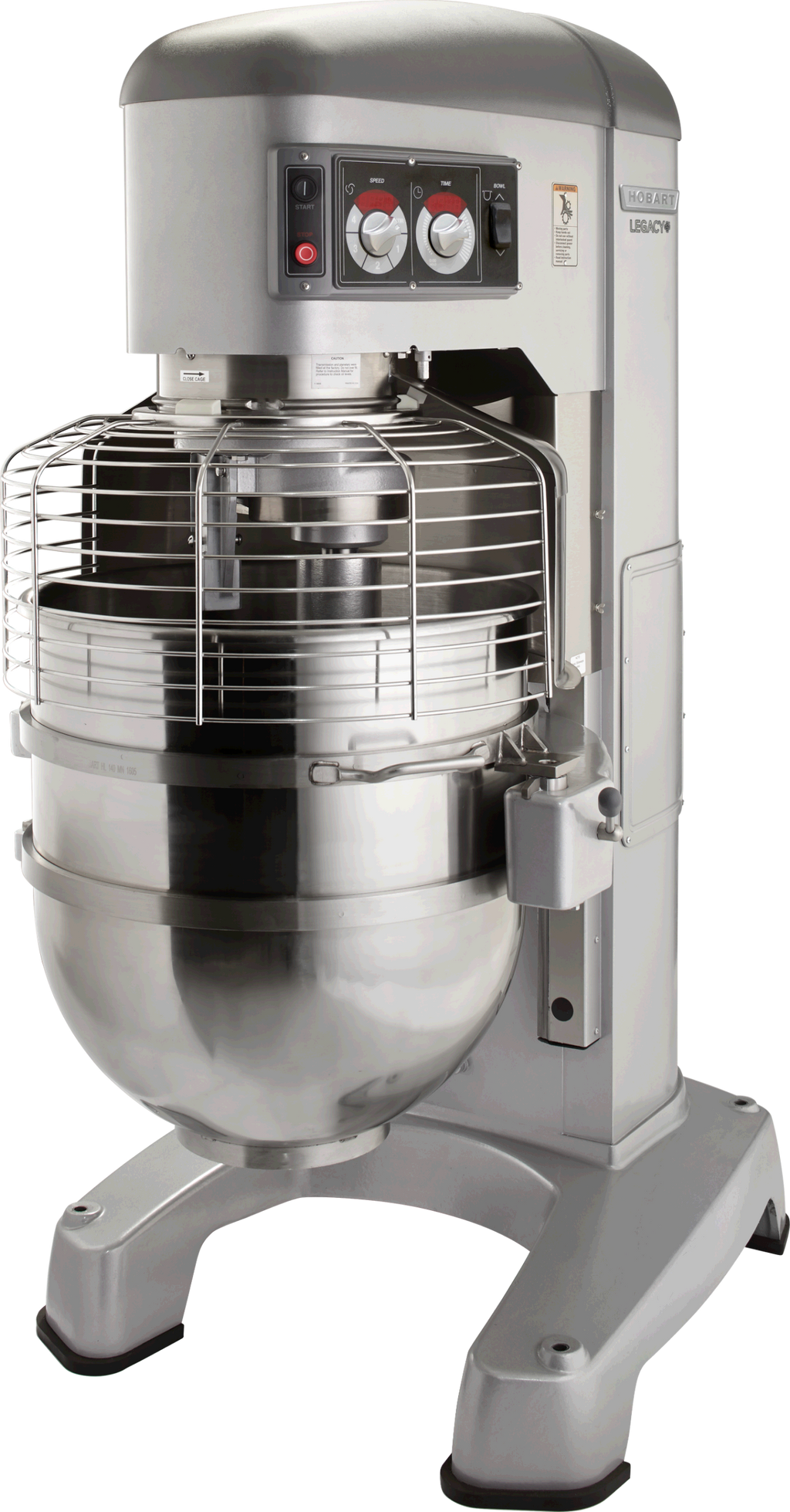

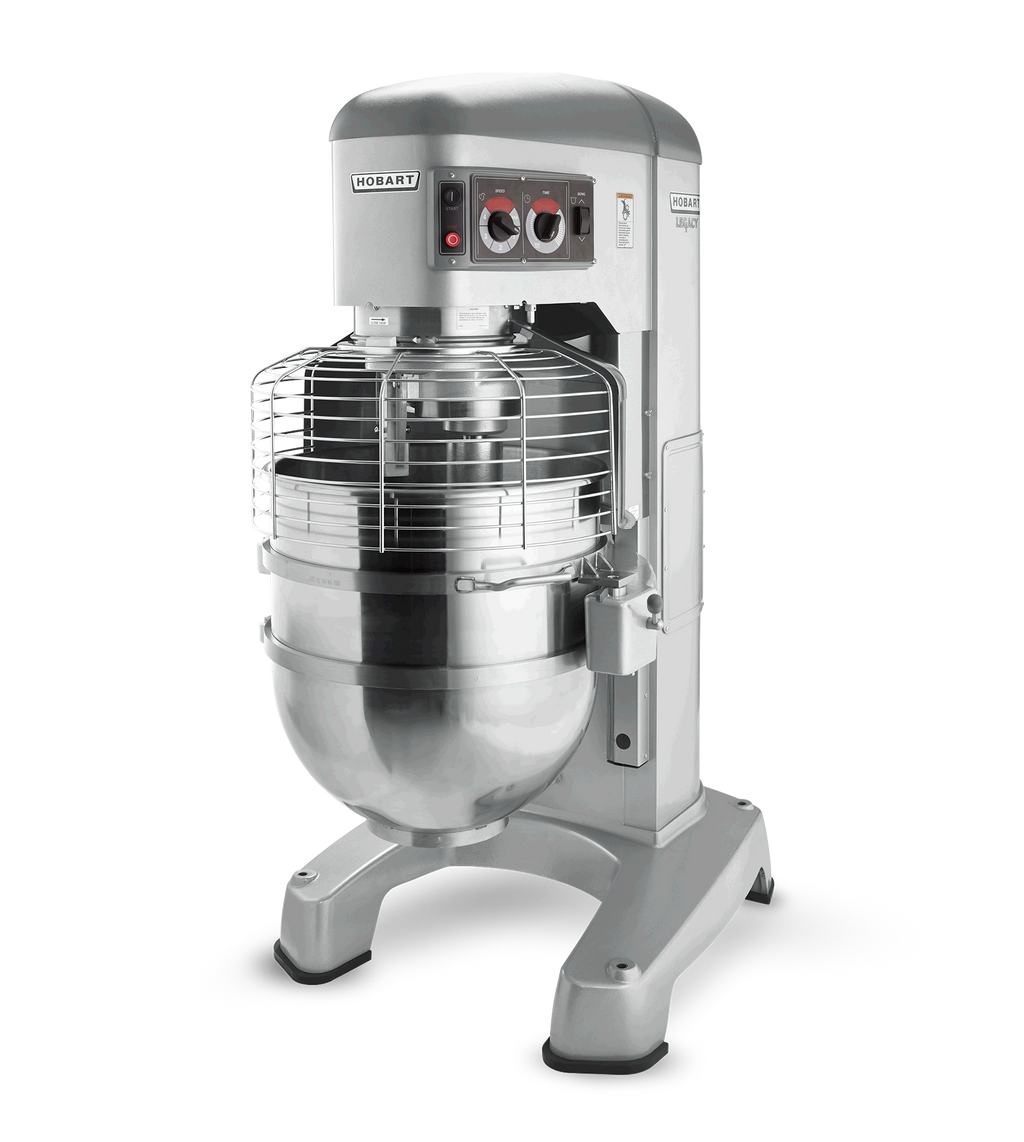

The Legacy HL1400 is the largest mixer in the Legacy range. It’s a 132-litre floor-standing planetary mixer for commercial bakeries, central production kitchens and large-scale catering. A 3.73kW gear-driven motor powers four speeds plus a slow stir speed, and Shift-on-the-Fly lets staff change speed while the mixer is running. Soft Start eases the agitator up to speed, which stops flour and liquids spraying out of the bowl.
A power bowl lift raises and lowers the bowl at the touch of a switch, and the bowl swings out for easy unloading. The 50-minute Smart Timer counts down on a digital display and remembers the last time used. It comes with a stainless steel bowl, beater, dough hook and a bowl truck for moving the full bowl around the kitchen.
Legacy HL1400 or HL800? The HL1400 has a much larger 132L bowl and a 3.73kW motor, compared with 76L and 2.2kW on the HL800. If you’re producing dough at industrial volumes, choose the HL1400. Both must be bolted to a level floor, and both have the whip sold separately.
Key features
- 132L stainless steel bowl
- Floor-standing design with neoprene foot pads
- Four speeds plus stir, with Shift-on-the-Fly speed changes
- Soft Start agitation to reduce splashing
- 50-minute Smart Timer with digital display and automatic time recall
- Heavy-duty 3.73kW motor with gear transmission
- Power bowl lift
- Easy on and off stainless steel bowl guard
- Ergonomic swing-out bowl with single-point installation
- Quick-release agitators
- Includes bowl, beater, dough hook and bowl truck
Good to know before you buy
The mixer must be bolted to a level floor. It runs on three-phase 415V power, and the power cord and plug are sold separately, so have an electrician check your supply and fit the right connection. It stands 1718mm tall, weighs about 695kg shipped, and needs clear access for delivery. Allow about 1595 x 1101mm when the bowl swings out. Whips are sold separately (“I” wire whip and “D” whip), along with a pastry scraper, bowl scraper, splash cover and mincing attachment.
Specifications
| Model | HL1400-10STDA |
| Height | 1718mm |
| Overall depth | 1197mm |
| Bowl size | 132L |
| Speeds | 4 fixed plus stir, Shift-on-the-Fly |
| Timer | 50-minute Smart Timer with recall |
| Motor | 3.73kW |
| Drive | Gear driven |
| Bowl lift | Powered |
| Included | Stainless steel bowl, beater, dough hook, bowl truck |
| Power supply | 415V / 50Hz / three-phase, 10A (6.8A max draw) |
| Power cord | Sold separately |
| Installation | Must be bolted to a level floor |
| Shipping weight | 695kg |
Planning a production bakery or large-scale kitchen? Tell us your batch sizes, or visit our Wagga showroom, and we’ll talk you through it.
