Description
The AMXXL is Hobart’s largest hood type machine, built for high-volume kitchens, bakeries and production sites. Its 540mm chamber takes up to 24 plates per rack, eight 600 x 400mm baking sheets, eight 660 x 500mm trays or two 1/1 gastronorm boxes in one load. The shortest cycle is 52 seconds, and the ROTOR-X upper and lower wash arms, driven by a 1.2kW pump, handle heavy soil.
It has the same smart features as the Profi AMX. Staff run it from a colour touchscreen, the wash arms clean themselves every cycle, SENSO-ACTIVE keeps rinse water to a minimum, and the SmartConnect app shows usage, running costs and service information. The fully enclosed hood keeps steam out of your kitchen. You can add VAPOSTOP ER exhaust heat recovery, drain water heat recovery and AUTO-HOOD LIFT as optional upgrades.
AMXXL or AMX? The AMXXL has a taller 540mm chamber, a larger rack option and a faster cycle. If you regularly wash oversized trays, sheets or GN boxes, choose the AMXXL. For standard plates and glasses, the AMX will do the job.
Key features
- 540mm loading height with 500 x 500mm or 600 x 500mm racks
- Fits 600 x 400mm sheets, 660 x 500mm trays and 1/1 GN boxes
- 52-second shortest cycle, plus 75 and 180-second and special cycles
- ROTOR-X four-spoke rotating wash arms with a 1.2kW wash pump
- VISIOTRONIC-TOUCH colour touchscreen and SmartConnect app
- Self-cleaning wash arms, SENSO-ACTIVE water management and GENIUS-X² fine filter
- Fully enclosed hood, CLIP-IN arms and EASY-CLEAN blue markings

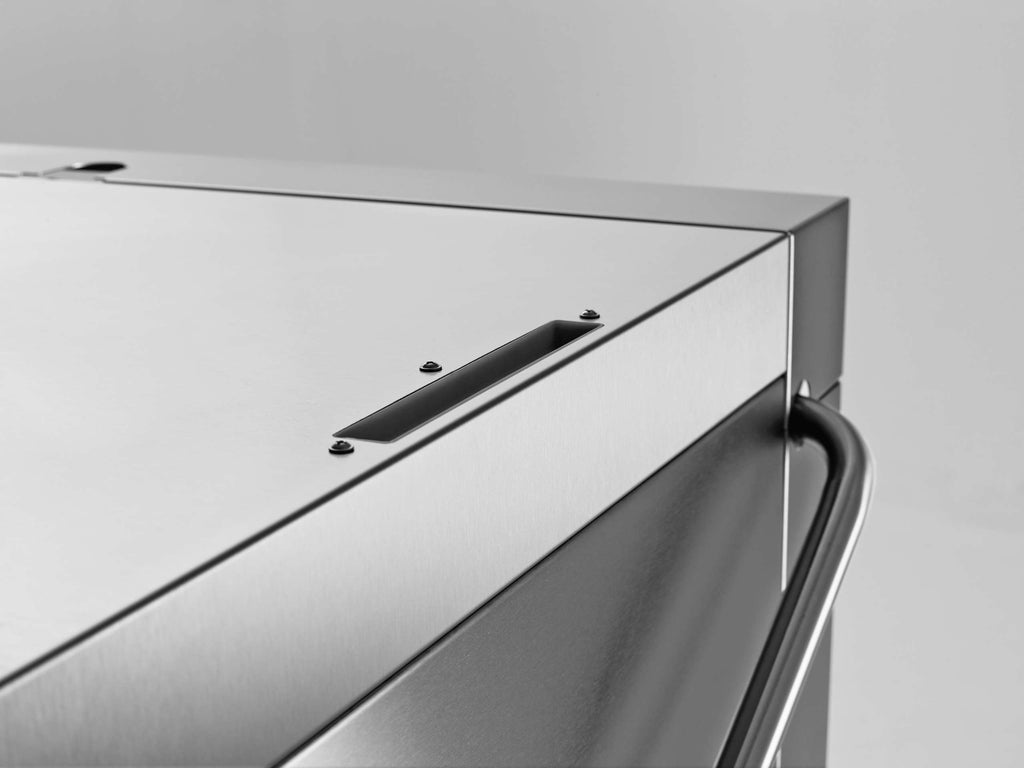

- Optional VAPOSTOP ER, drain water heat recovery and AUTO-HOOD LIFT
- Made in Germany, WaterMark approved
Benches, sinks, sprays, water treatment units and chemicals shown in images are not included.
Good to know before you buy
The standard model draws 16.5kW on a three-phase 3 x 32A supply, so have an electrician check your power before ordering. With the hood raised, it stands 2195mm tall. Keep the right-hand side accessible if you’re installing it in a corner. If your water hardness is above 3°dH, Hobart recommends a Hydroline water treatment system.
Specifications
| Width (including handles) | 803mm |
| Height, hood closed / open | 1610mm / 2195mm |
| Bench height | 860mm |
| Loading height | 540mm |
| Rack size | 500 x 500mm or 600 x 500mm |
| Cycle times | 52 / 75 / 180 sec + special cycles |
| Water consumption | 1.8L per rack (varies with soil and cycle) |
| Tank capacity | 40L |
| Tank heating | 2.5kW |
| Booster | 12.7kW (6.3kW alternative) |
| Total loading | 16.5kW, 3 x 32A (see note below) |
| Power supply | 415V / 50Hz / three-phase |
| Wash pump | 1.2kW |
| Noise level | 64 dB(A) |
| Weight (net / gross) | 130kg / 150kg |
| Max inlet water temp | 60°C |
Need help planning a high-volume dish area? Send us your layout or visit our Wagga showroom, and we’ll talk you through it.
