Description
The UXT-ER is the Profi UXT with exhaust heat recovery and VAPOSTOP built in. Exhaust heat recovery captures steam from the machine and uses it to heat the incoming water, reducing the power needed by up to 5.2kW. VAPOSTOP stops steam escaping into your kitchen when the door opens. For a machine this size running through the day, that’s a real saving on power and a more comfortable work area.
It has the same extra-wide 1240 x 700mm rack, 860mm loading height and twin 2.9kW wash pumps as the UXT, with POWER wash for heavy soil. SENSO-ACTIVE keeps rinse water to a minimum, and the GENIUS-X² fine filter reduces detergent use by up to 35%.
Key features
- Exhaust heat recovery and VAPOSTOP built in (saves up to 5.2kW)
- Extra-wide 1240 x 700mm rack
- 860mm loading height (can be lowered to 650mm)
- Front door loading

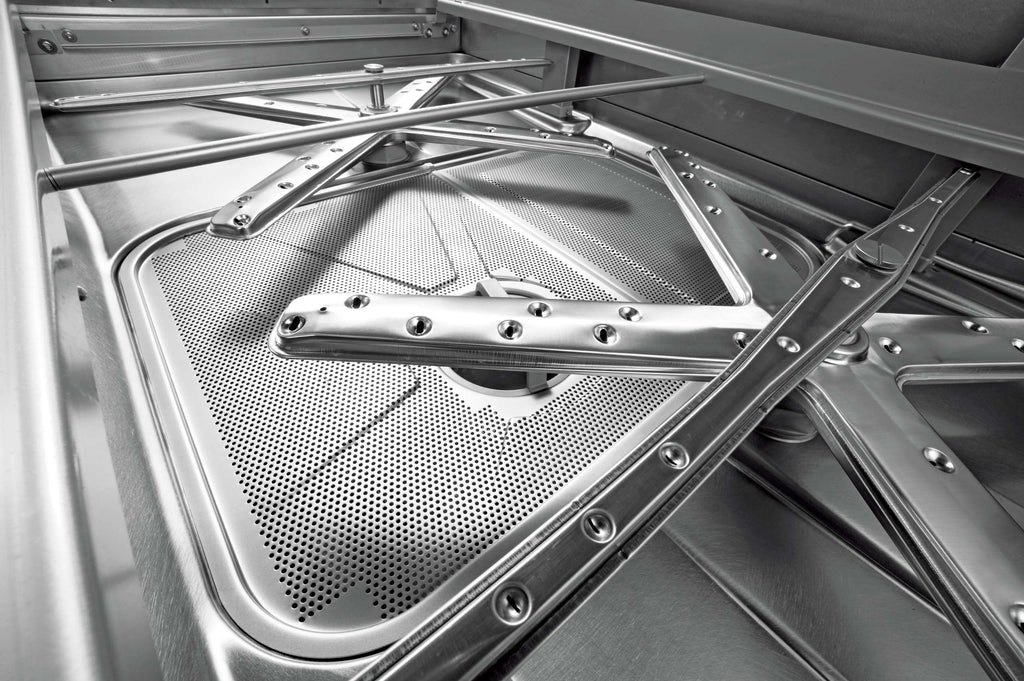

- Two 2.9kW wash pumps (2 x 1,150L/min) with ROTOR-X wash arms
- POWER wash high-pressure program for heavy soil
- 120, 240 and 360-second cycles plus special cycles
- VISIOTRONIC single-button control with remaining time and text display
- SENSO-ACTIVE water management and GENIUS-X² fine filter
- CLIP-IN wash and rinse arms, interlocked strainer and EASY-CLEAN blue markings
- USB download of operating data and Hygiene programme
Good to know before you buy
The machine draws 21.6kW on a three-phase 3 x 35A supply, so have an electrician check your power before ordering. Unlike the standard UXT, it needs one hot and one cold water connection. The heat recovery unit adds about 200mm to the top of the machine, so check your ceiling clearance. If your water hardness is above 3°dH, Hobart recommends a water softener.
Specifications
| Model | UXT-ER |
| Width (body / overall) | 1300mm / 1375mm |
| Depth (body / overall) | 770mm / 945mm |
| Height, door closed | 1984mm plus about 200mm for the heat recovery unit |
| Loading height | 860mm (can be lowered to 650mm) |
| Rack size | 1240 x 700mm |
| Cycle times | 120 / 240 / 360 sec + special cycles |
| Water consumption | 7.5L per rack |
| Tank capacity | 130L |
| Tank heating | 6.1kW |
| Booster | 15.3kW (9.1kW alternative) |
| Total loading | 21.6kW, 3 x 35A (15.6kW, 3 x 35A alternative) |
| Power supply | 415V / 50Hz / three-phase |
| Water connections | 1 x hot, 1 x cold |
| Wash pumps | 2 x 2.9kW (2 x 1,150L/min) |
| Exhaust heat recovery saving | Up to 5.2kW |
| Noise level | 70 dB(A) |
| Weight (net / gross) | 295kg / 315kg |
| Water flow pressure | 0.5 to 6 bar |
| Max inlet water temp | 60°C |

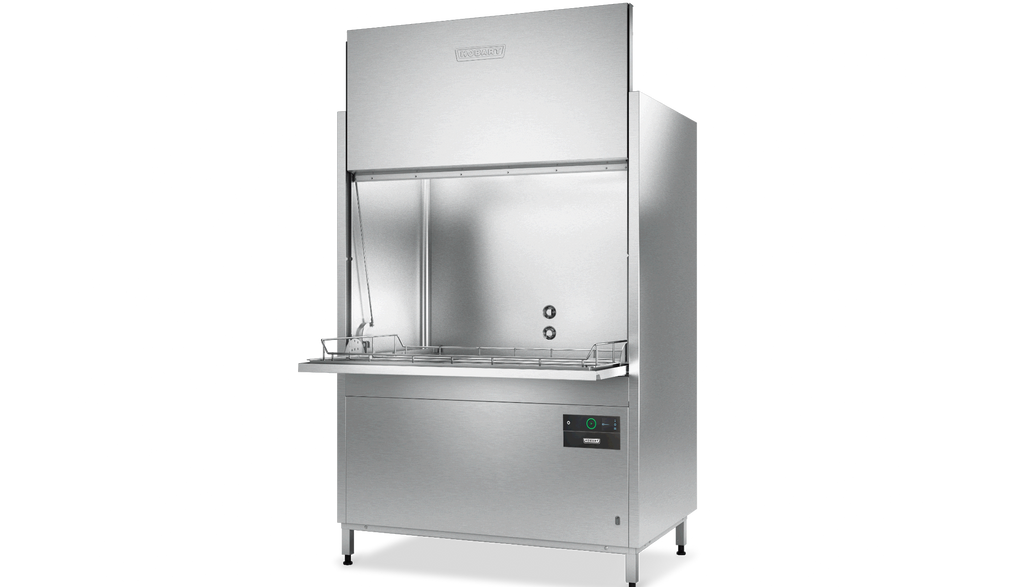

NOTE: Images show the standard UXT. The UXT-ER adds an exhaust heat recovery unit on top of the machine
Running a high-volume pot wash all day? Send us your layout or visit our Wagga showroom, and we’ll talk you through the running cost savings.
